Emergency Trolley
NO.:000149,001756
Product Model:RH-CPM001
Product Size:750*475*930mm
Product Size:850*520*950MM
Color:Red,Blue,Optional
Central lock optional

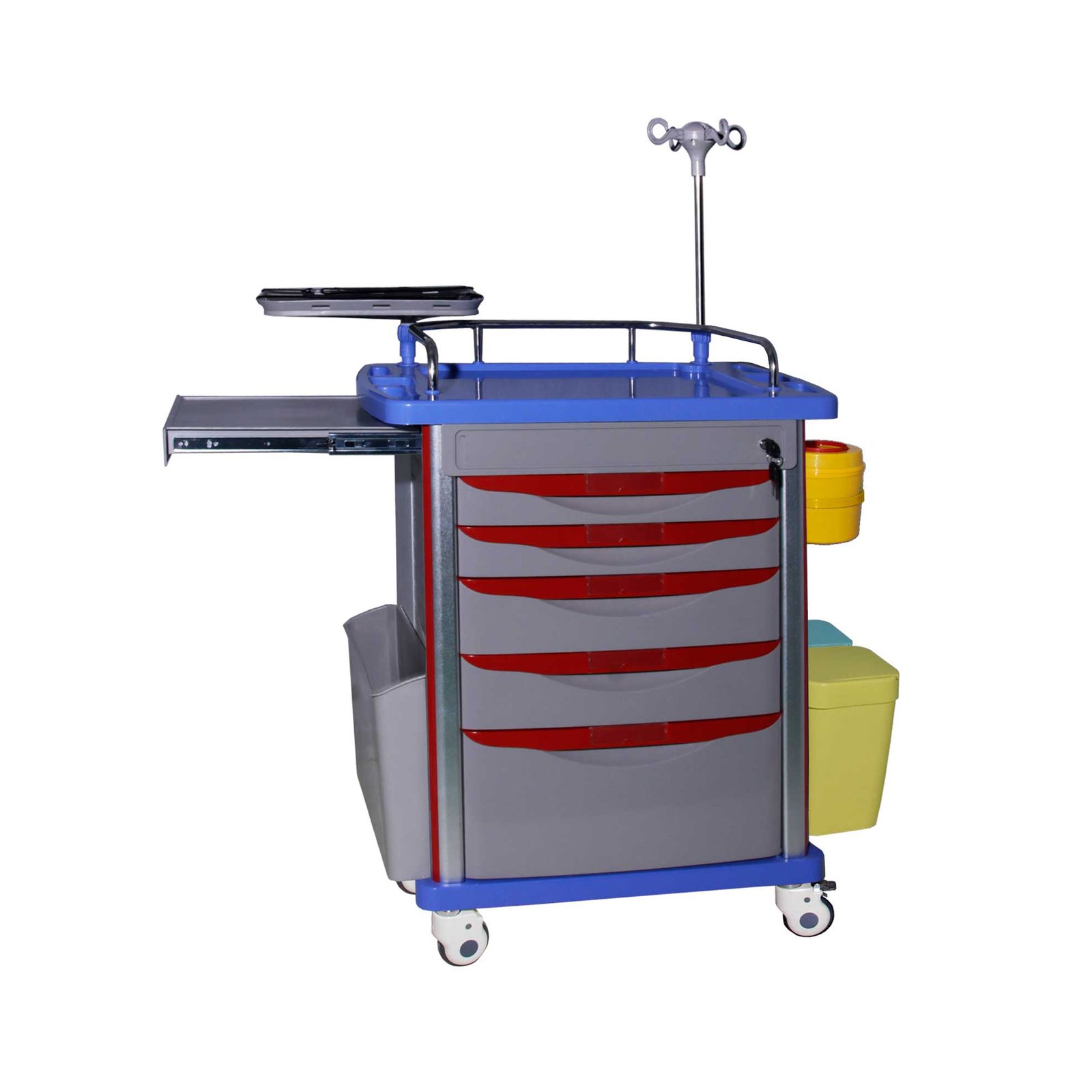

Physical display of products Image:
Product Details:
*Mainly composed of aluminum-steel-ABS engineering plastic structure; aluminum alloy column with four columns for load-bearing.
*Upper part of the car: ABS curved bottom injection molding process with handrails on both sides, recessed design to prevent items from slipping, the platform is equipped with stainless steel guardrails, and the platform is equipped with transparent soft glass.
*Left side of the car: Defibrillator platform can be interchanged with the infusion rack left and right, hidden sub-workstation detachable file box.
*Right side of the car: hidden telescopic infusion rack with optional left-right interchangeable defibrillator platform, rotating sharps box, double dirt bucket.
*Behind the car body: defibrillation board, hidden telescopic oxygen cylinder holder, movable power cord.
*Front of the car: central lock, configured with five drawers, the first two layers of small drawer surface 80mm, inner space: 430 * 335 * 68mm, two medium drawer surface 120mm, inner space: 430 * 335 * 110mm, a deep drawer surface 240mm, inner space: 430 * 335 * 220mm, drawer 3 * 3 separator, can be freely separated,drawer handle for dovetail, sealing slot type transparent identification card specifications: 115 *28mm, to prevent the entry of liquid and dust.
*bottom of the body: four 100mm diameter luxury universal insert silent wheels, two of them with brake function.
Model | Product Size | Material |
RH-CPM001(B) | 750*475*930mm | Aluminum alloy +ABS plastic |
RH-CPM001(A) | 850*520*950MM | Aluminum alloy +ABS plastic |
