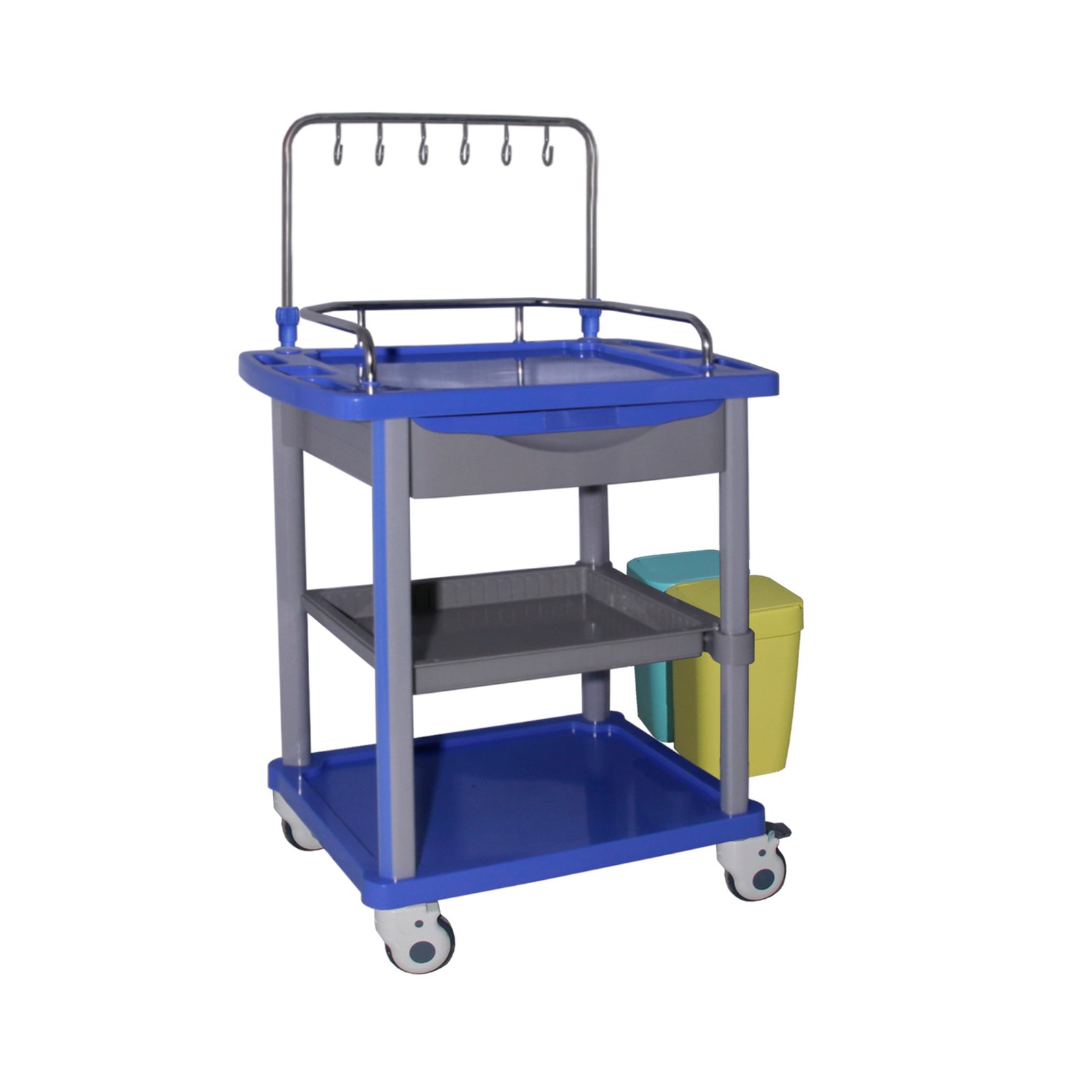

Infusion Trolley

NO.:001944
Product Model:RH-CPF108
Product Size:750*475*930MM
Product Size:850*520*930MM

Category:

*The product is mainly composed of steel – ABS engineering plastic structure; no gap plastic steel triangular column four columns load-bearing。
*The upper part of the body: countertop large mold ABS injection molding process with handrails on both sides of the countertop, recessed design can prevent items from slipping, the countertop is equipped with stainless steel guardrail; height of the guardrail 95mm, the countertop within the use of dimensions: 515 * 435mm, the countertop with a transparent soft glass.
* front of the body: the center lock can be rotated, configure two in the drawer face 120mm hollow: 430 * 335 * 110mm, drawer 3 * 3 separators, can be freely separated, drawer pulls for dovetail type, anti-theft sealing slot signage size: 115 * 29mm. drawer below the two rotatable garbage cans (garbage cans can be up and down to adjust the height of the pegs) garbage cans can be taken.
*The left side of the car body: embedded retractable hanging piece design deputy workbench, side-mounted basket, hand sanitizer bracket.
*Right side of the body: rotating 3-liter round sharps box, flip-top color-coded garbage can 175*175*280MM, two-color for garbage classification (yellow medical waste for injurious garbage, green household garbage for infectious garbage)
*Behind: liftable single-row gantry infusion hook.
*Chassis: large mold one-time molding ABS base plate, recessed design items are not easy to slip. Recessed use size: 565 * 420 * 30MM, the corners of the base plate protruding anti-collision design.
*Bottom of the body: four 4-inch deluxe universal insertion whisper wheels, two of them with brake function.

Model

Product Size

Material

RH-CPF108(B)

750*475*930MM

Aluminum alloy +ABS plastic

RH-CPF108(A)

850*520*930MM

Aluminum alloy +ABS plastic
