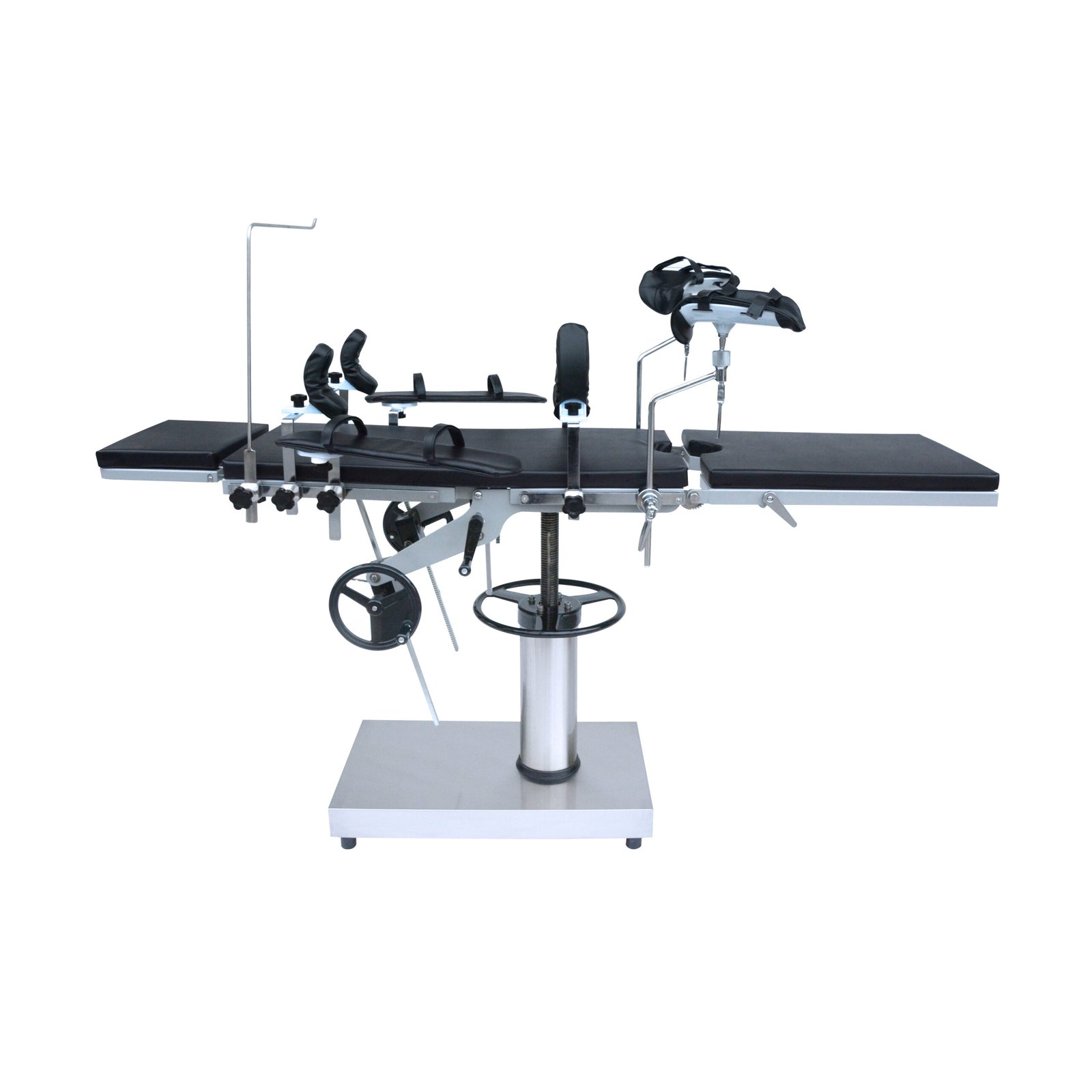

This product adopts screw drive lifting, the backplane of the table and the waist bridge are driven by hand operation worm and gear mechanism. The leg plate is adjusted by a ratchet mechanism. It has the characteristics of light, flexible, practical and cheap. The shield is made of high-grade stainless steel.
Model | Length | Width | Tabletop lowest height | Elevation range |
RH-BTH01(B) | ≥2000mm | 480mm | ≤720mm | 250mm |
Parameter
Movements | Model：RH-BTH01(B) | |
Head plate | Up | ≥90 |
Down | ≥90° | |
Back plate | Up | ≥75° |
Down | ≥20° | |
Leg plate | ≥90° | |
Kidney Bridge Elevation | ≥120mm | |
Standard configuration
Name | QTY | Name | QTY | Name | QTY |
Anaesthesia screen | 1 piece | Shoulder support (cushion） | 2 piece | Arm support（cushion） | 2 piece |
Body support（cushion） | 2 piece | Leg support（cushion） | 2 piece | Foot plate（cushion） | 2 piece |
Long Fixing Clamp | 2 piece | Fixing Clamp | 7 piece | Mattress | 1 piece |
