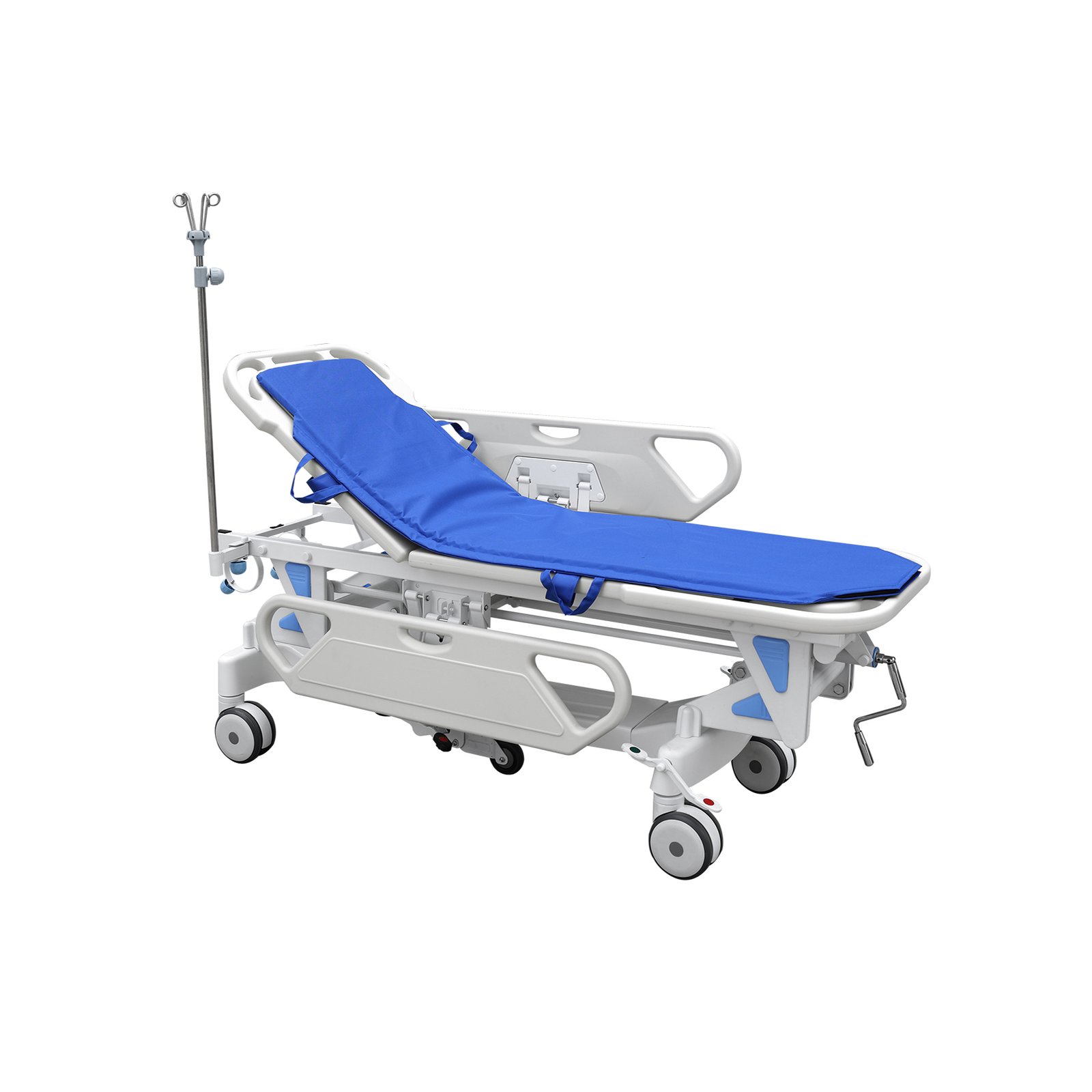

Manual Patient Transfer Trolley
NO.:000011
Product Model:RH-DM102
Product Size(L*W*H):193*64*56-86CM
File Download
Product introduction:
- The main frame structure adopts international A380.2 high-quality aluminum alloy die-casting. The appearance is beautiful and strong.
- The guardrail is a two-piece ABS lifting guardrail, which is solid and beautiful.
- The car surface is split design, and the upper body uses Italian dampers as the supporting force source, which is easy to operate.
- The hand crank (the screw is equipped with a clutch device) can adjust the height of the car surface, and the height adjustment range is 56-86CM.
- The transfer vehicle adopts the international advanced central control braking system, which is stable and reliable. Center wheel. The diameter is 150mm, equipped with a guide wheel device, which is convenient for the user to control the traveling direction of the car body, and it can be easily operated by one person, which is more convenient and ideal.
- The back lifting is controlled by air spring, which can be adjusted from 0-60°.
- Standard equipment: mattress, infusion rack.
Technical Parameter:
- Product Size:L193*W64*H56-86CM
- Back Section lift: 0-60°
- Load bearing: ≥200KG
- Four casters with a diameter of 150MM(6 inches)
- Equipped with a fifth guide wheel
- One Pair PP material adjustable guardrail
- Folding and storage hand rocker to control vehicle height
Packing Parameter:
- Wooden packing size:204*70*60CM
- N.W:75KG
- G.W.:102KG
Technical Configuration:
Mattress | 1pc |
IV Pole | 1pc |
Main frame | 1pc |
Oxygen bottle holder | 1pc |
Center wheel | 4pcs |
Directional wheel | 1pc |
Lifting guardrail | 1pair |
